Reducer reducer cylindrical single-stage. a=135
๐ Drawings
๐ค alexey_ktop
Product Description

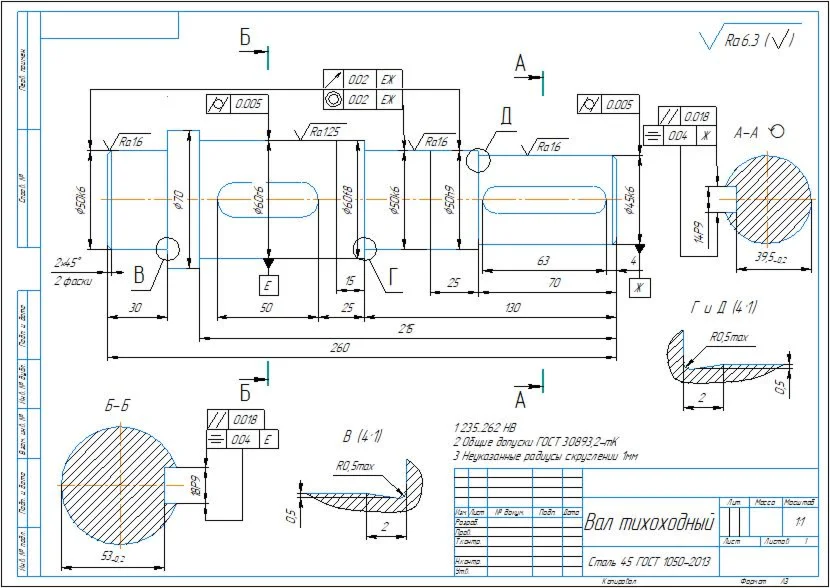

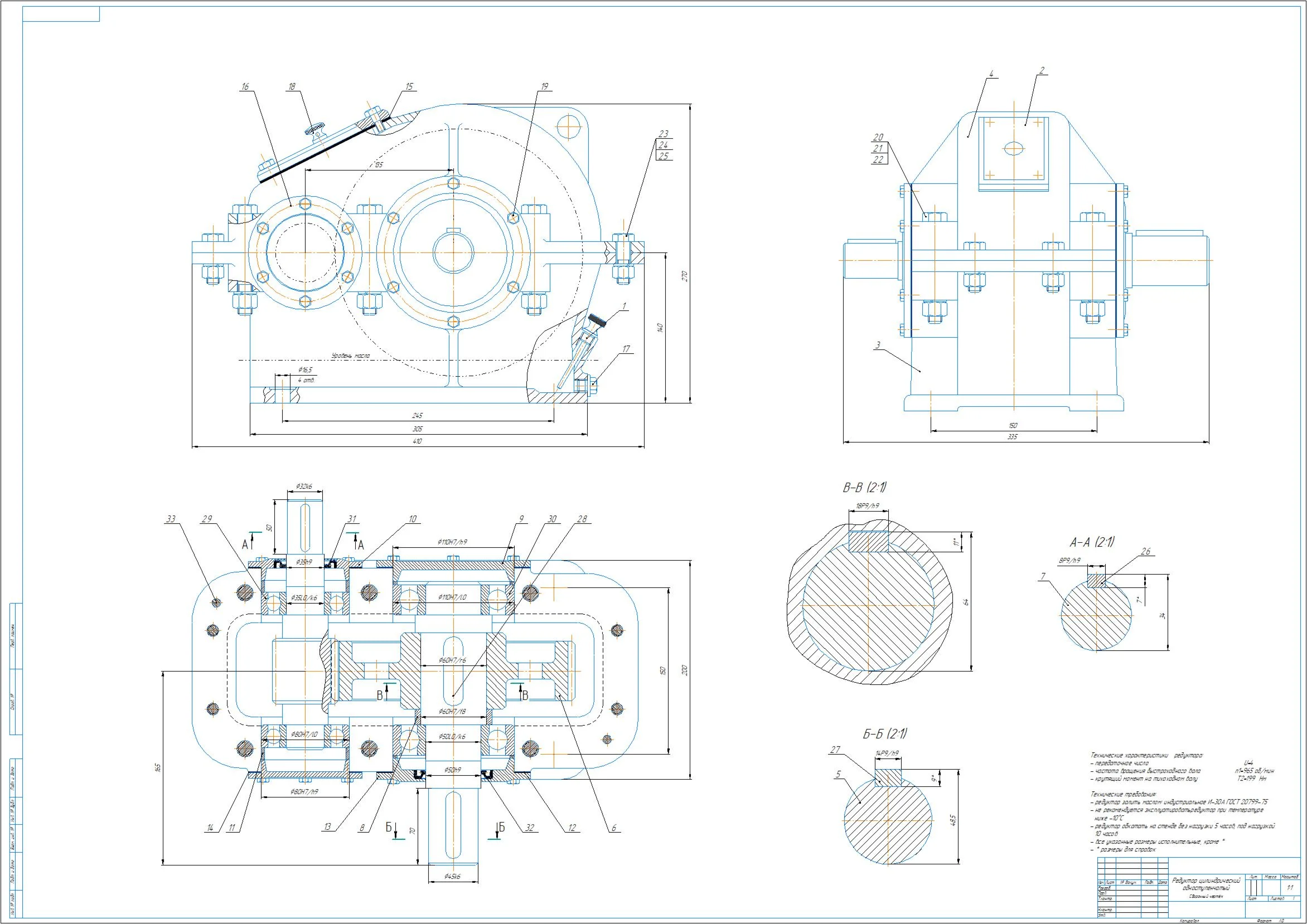

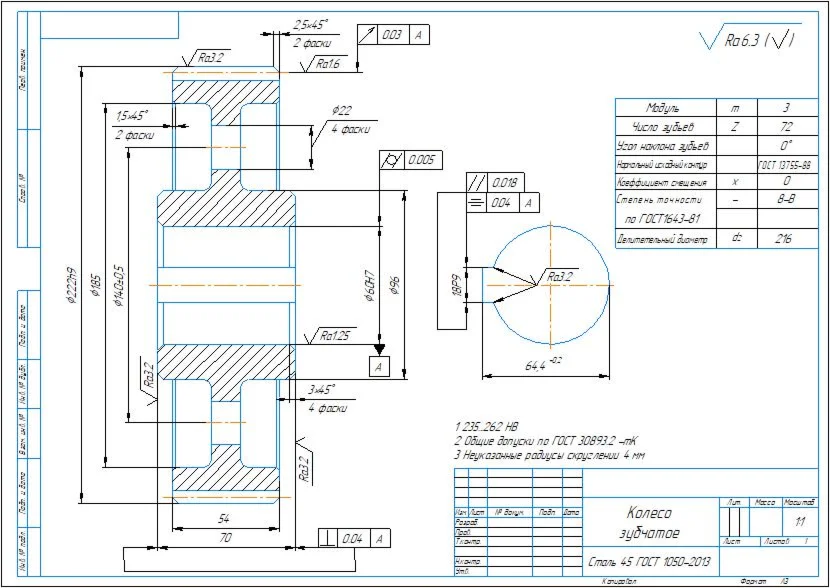

Assembly drawing of a single-stage cylindrical gearbox with the following parameters: center distance a=135 mm, engagement module m=3 mm, gear ratio u=4. Also attached are working drawings of the shaft and gear wheel. The drawings are made in compass
