Drawing of a cylindrical single-stage gearbox a=250
๐ Drawings
๐ค alexey_ktop
Product Description

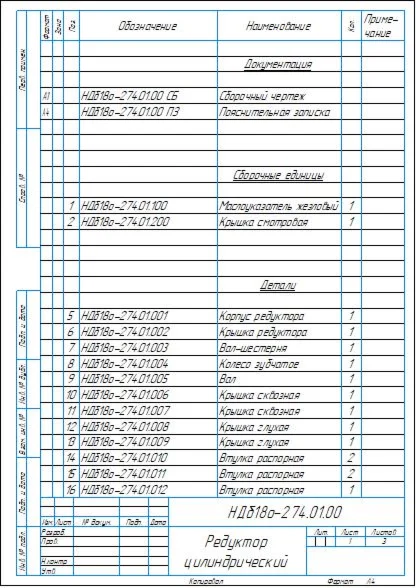

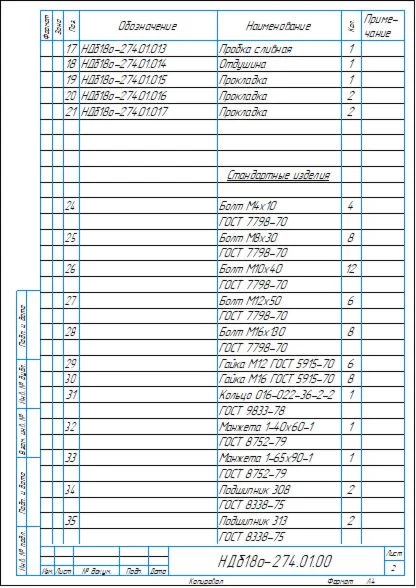

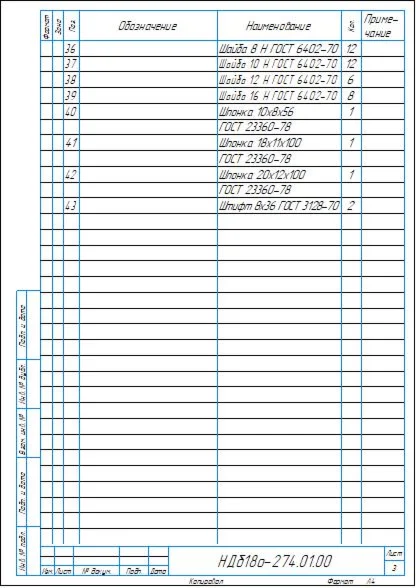

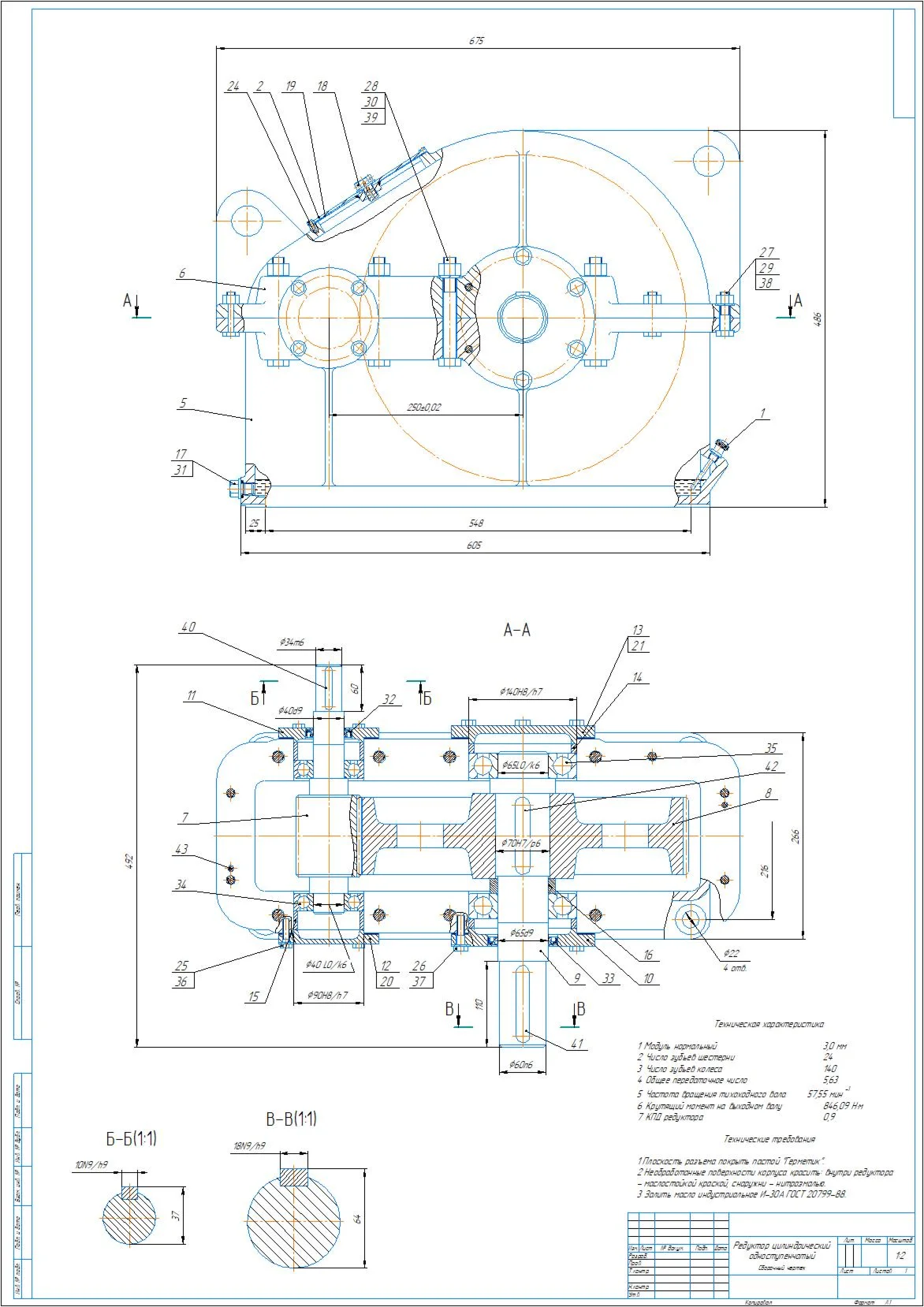

Assembly drawing and specification of a single-stage cylindrical gearbox with the following parameters: center distance: a=250 mm, module m=3 mm, gear ratio u=5.63. The drawing and specification are made in compass
