Drawing of single-stage cylindrical gear reducer
📂 Drawings
👤 alexey_ktop
Product Description

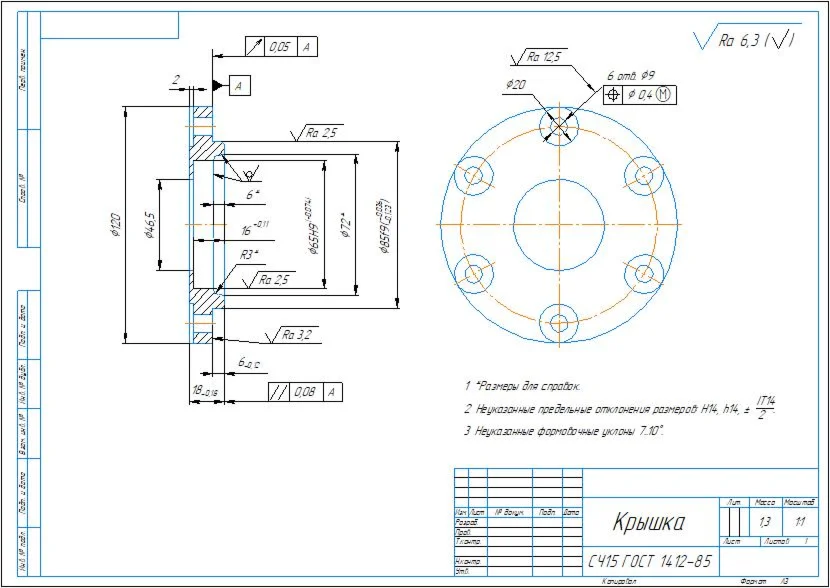

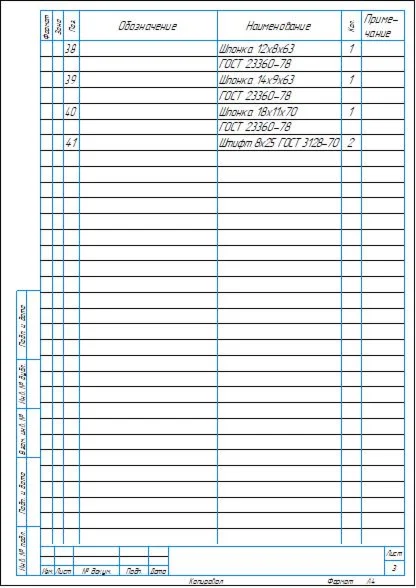

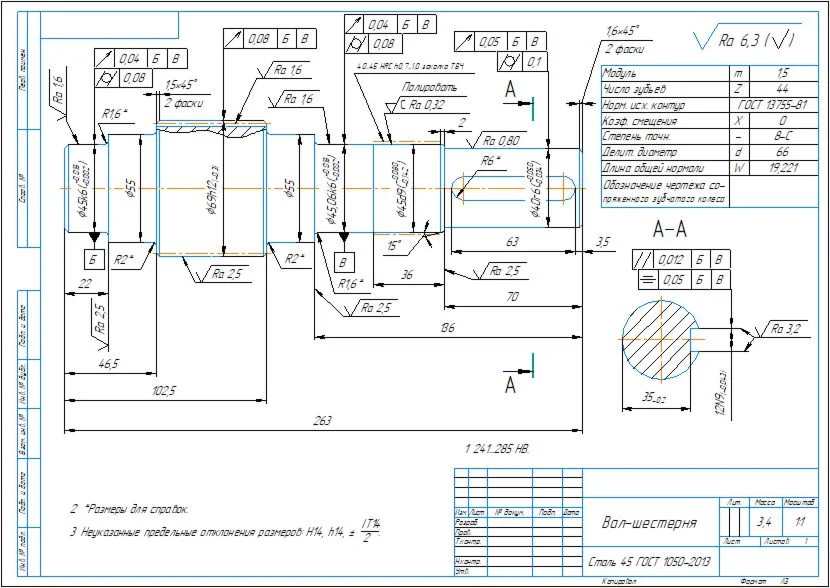

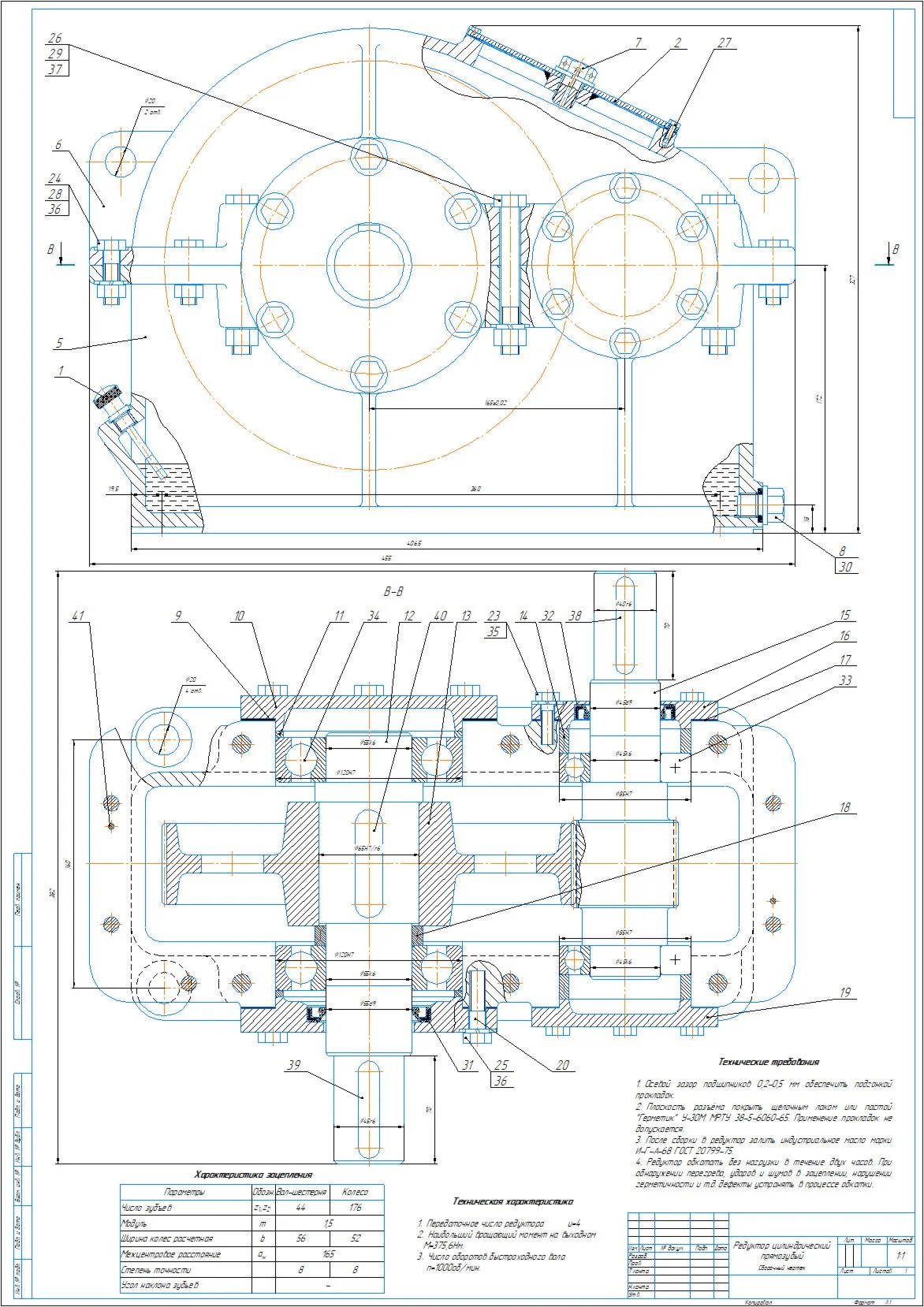

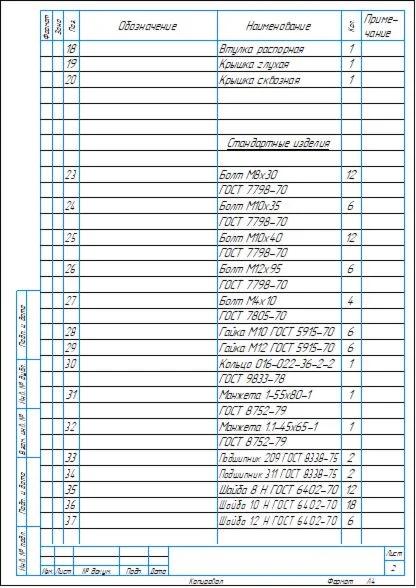

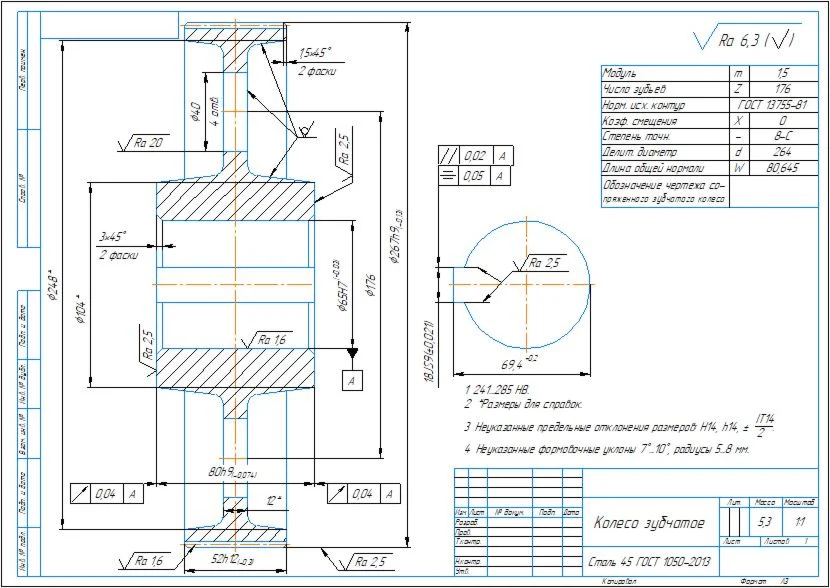

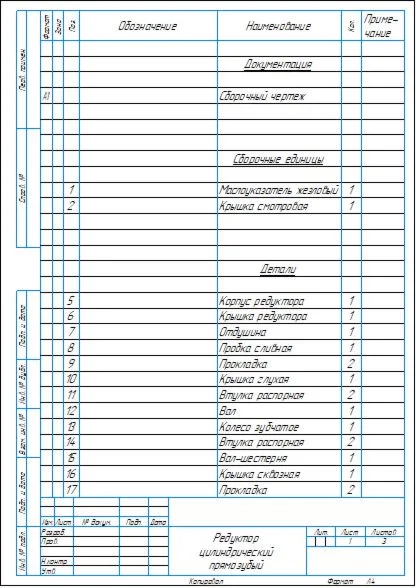

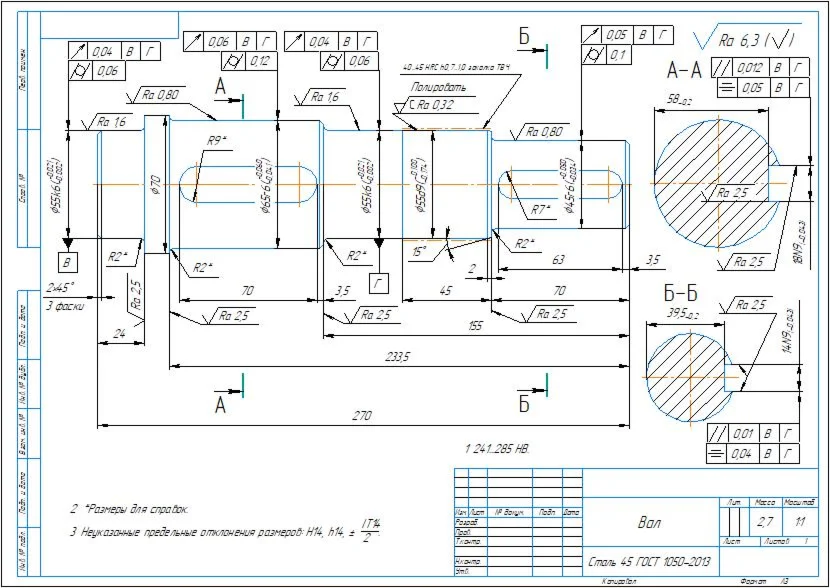

Assembly drawing and specification for a single-stage horizontal cylindrical gear reducer with the following parameters: center distance 165 mm, engagement module 1.5 mm, gear ratio 4. Also included are detailed drawings: low-speed shaft, pinion shaft, toothed wheel, through bearing cover. Drawings are made in Kompas 3D
