Drawings of a cylindrical gearbox a=100, detailing
๐ Drawings
๐ค alexey_ktop
Product Description

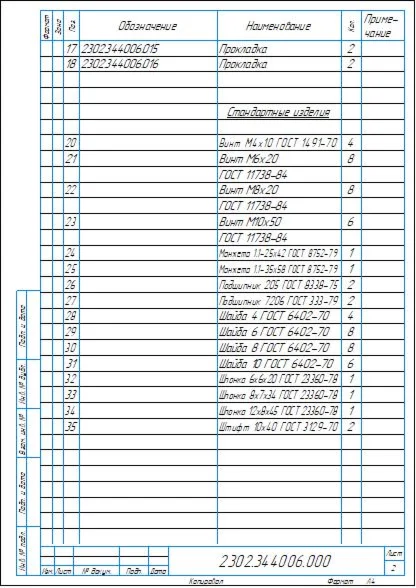

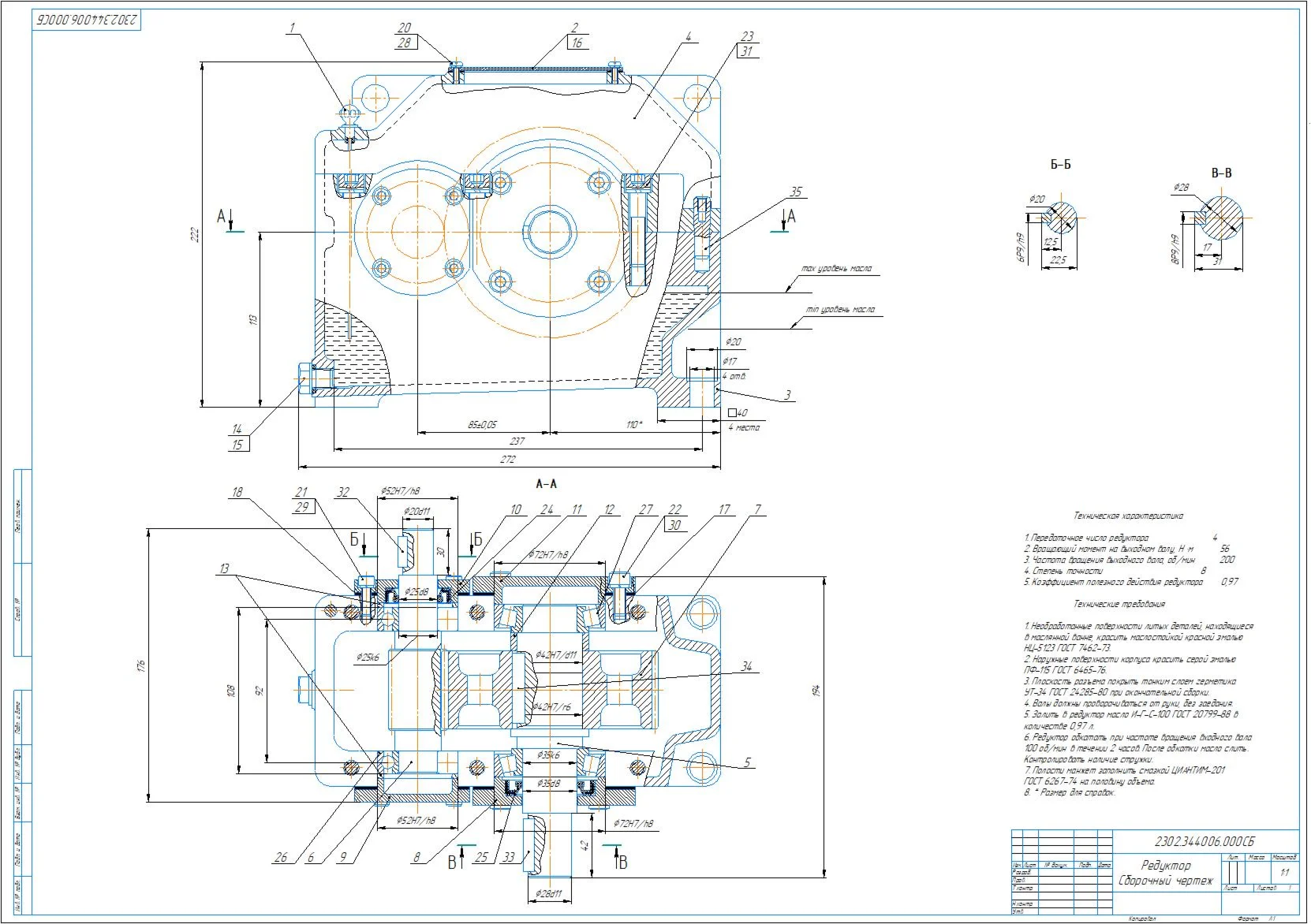

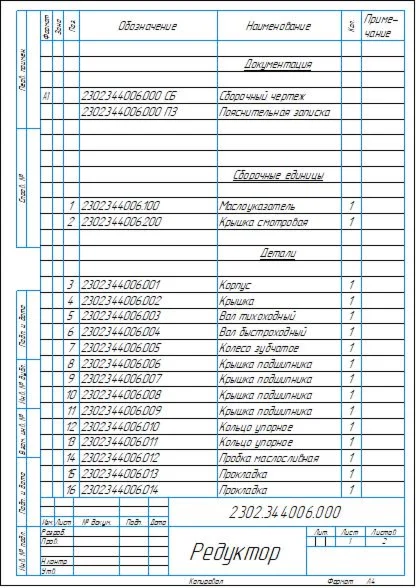

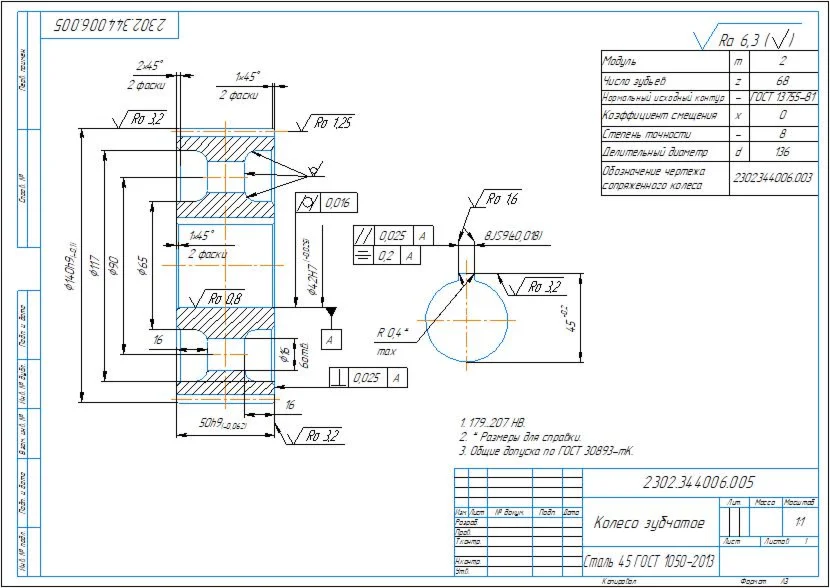

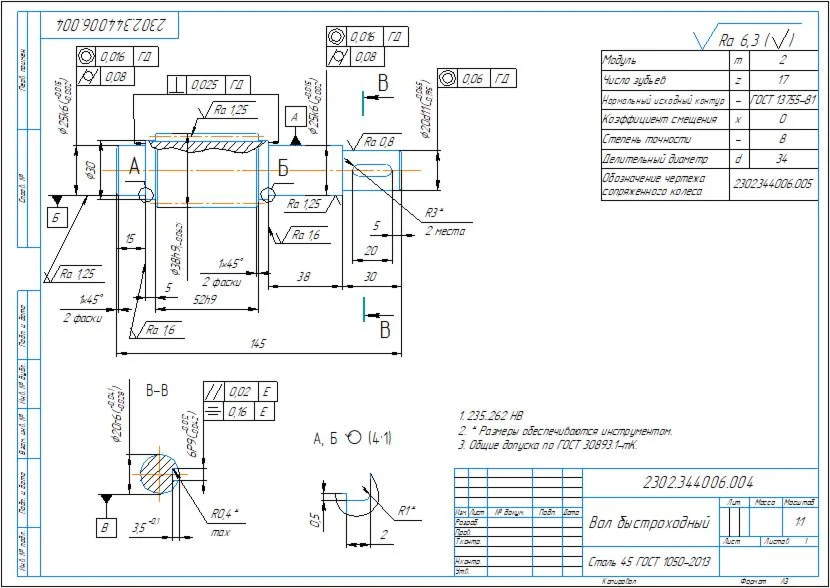

Assembly drawing and specification of a single-stage cylindrical gearbox with the following parameters: module m=2 mm, center distance a=100 mm, gear ratio u=4. Also attached are detailed drawings of the shaft and gear wheel. The drawings and specification are made in compass.
