Drawing of a cylindrical single-stage gearbox a=200
๐ Drawings
๐ค alexey_ktop
Product Description

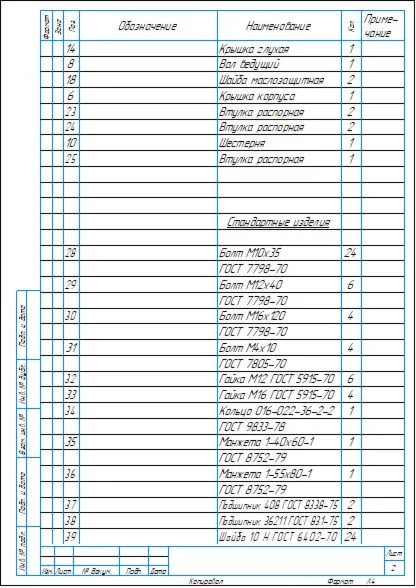

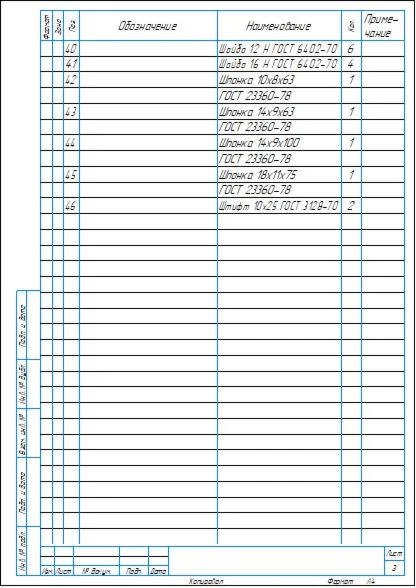

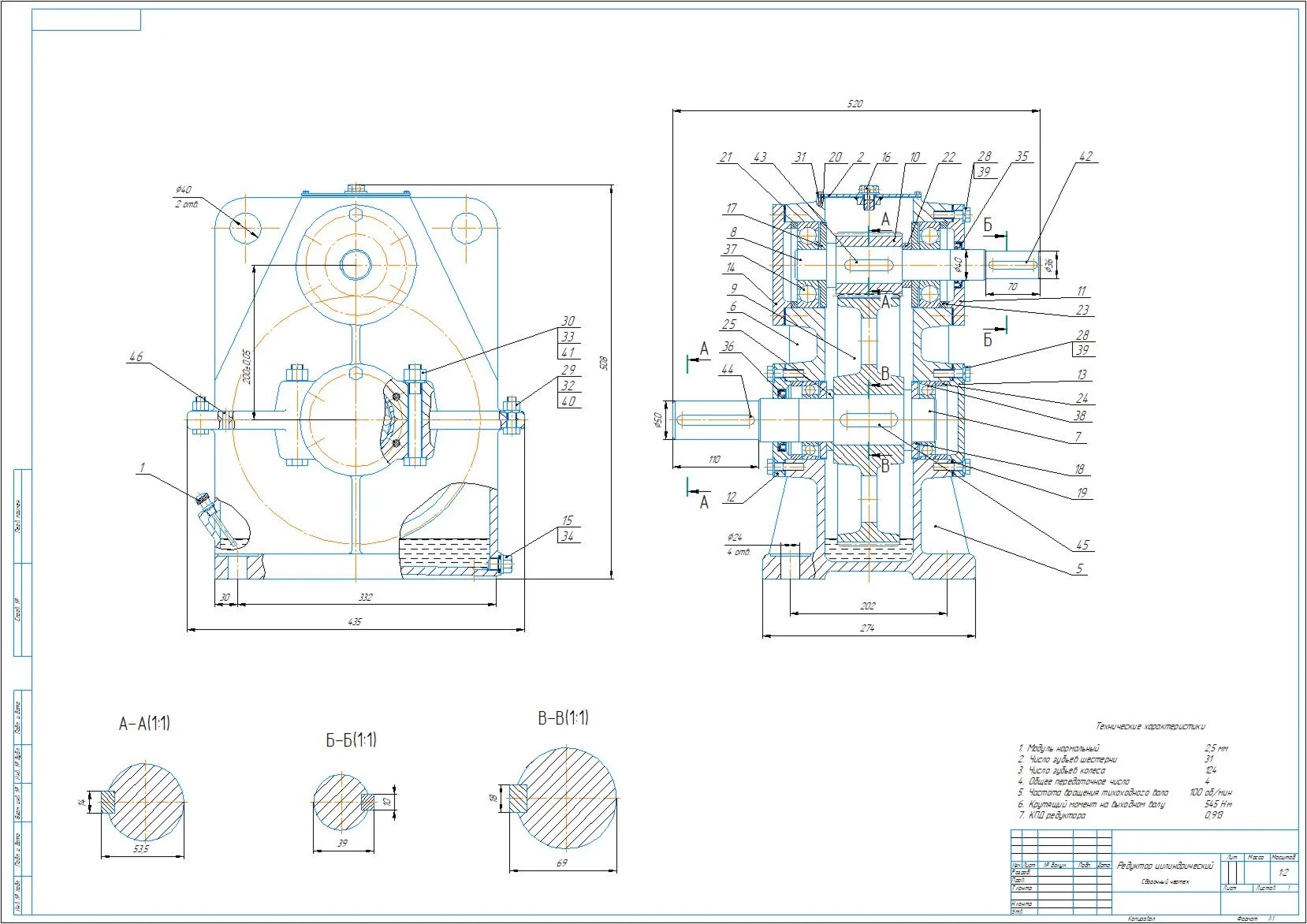

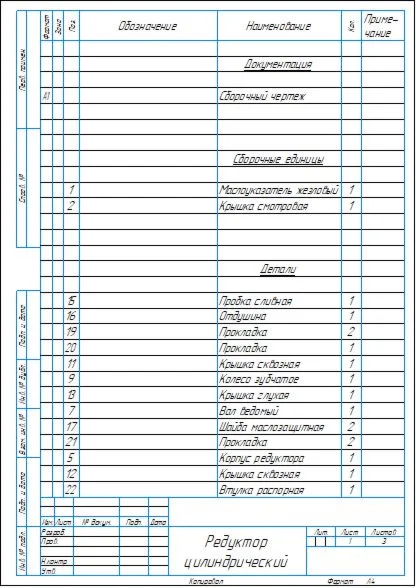

Assembly drawing and specification of a single-stage vertical cylindrical gearbox with the following parameters: module m=2.5 mm, center distance a=200 mm, gear ratio u=4. The drawing and specification are made in compass.
