Drawing of a single-stage chevron gear reducer m=2, a=1
๐ Drawings
๐ค alexey_ktop
Product Description

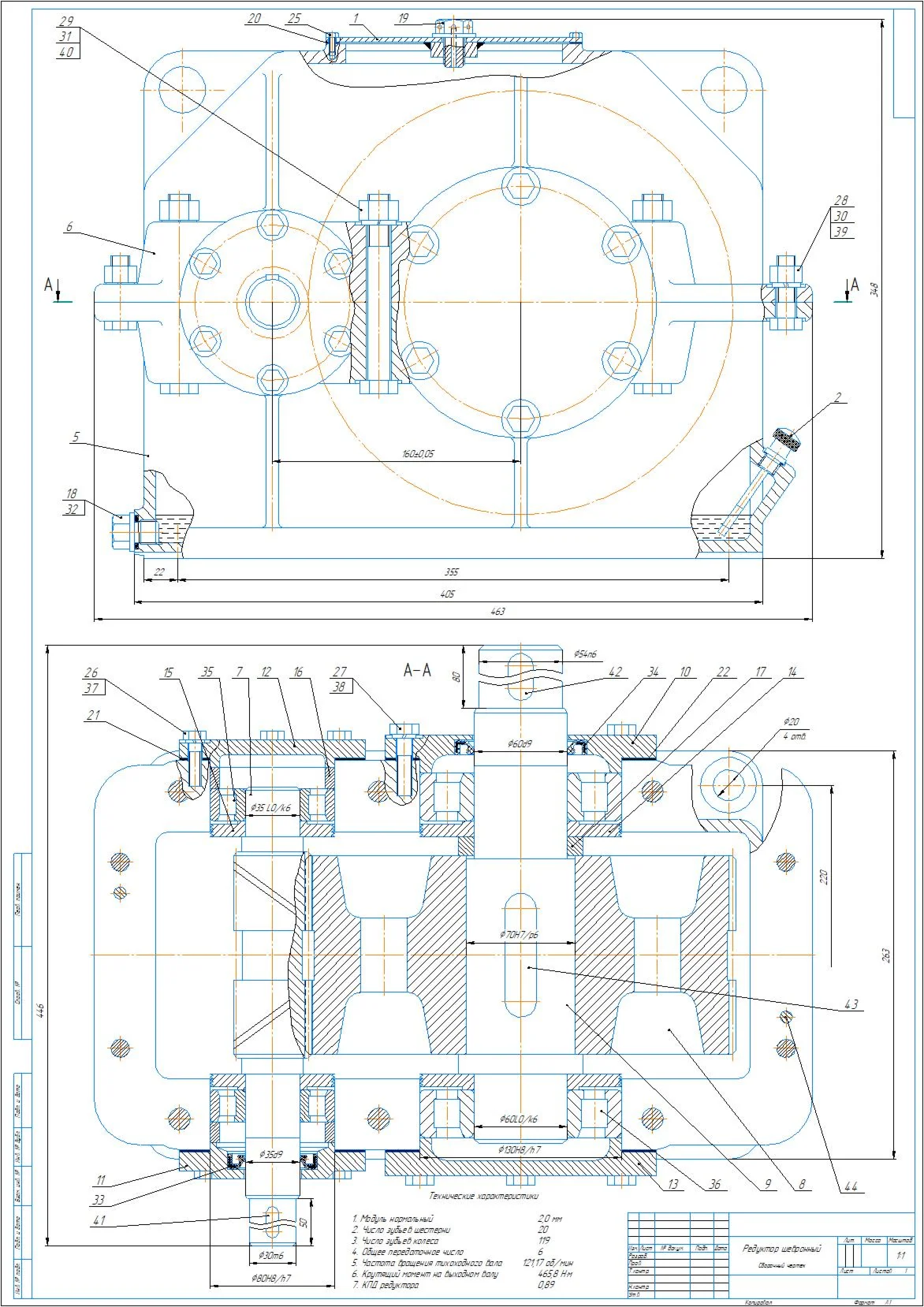

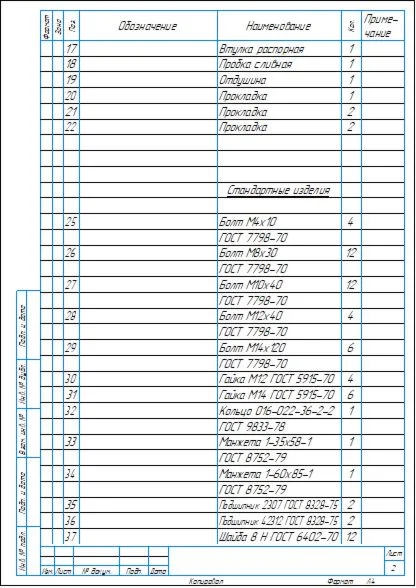

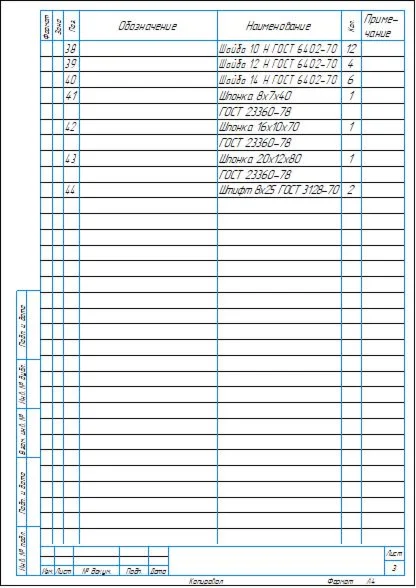

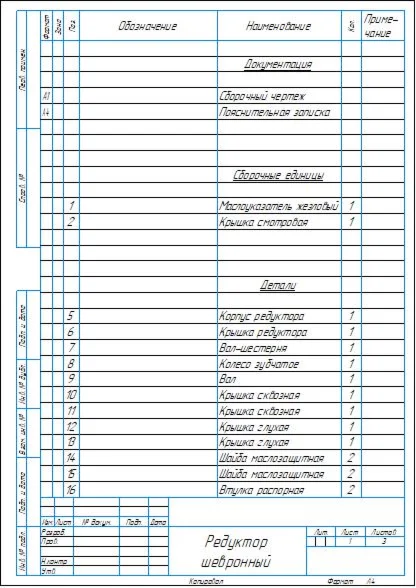

Assembly drawing and specification of a single-stage chevron gearbox with the following parameters: module m=2 mm, center distance a=160 mm, gear ratio u=6. The drawing and specification are made in Kompas 3D
