Drawing of the part gear wheel m=5; z=24 in compass
📂 Drawings
👤 alexey_ktop
Product Description

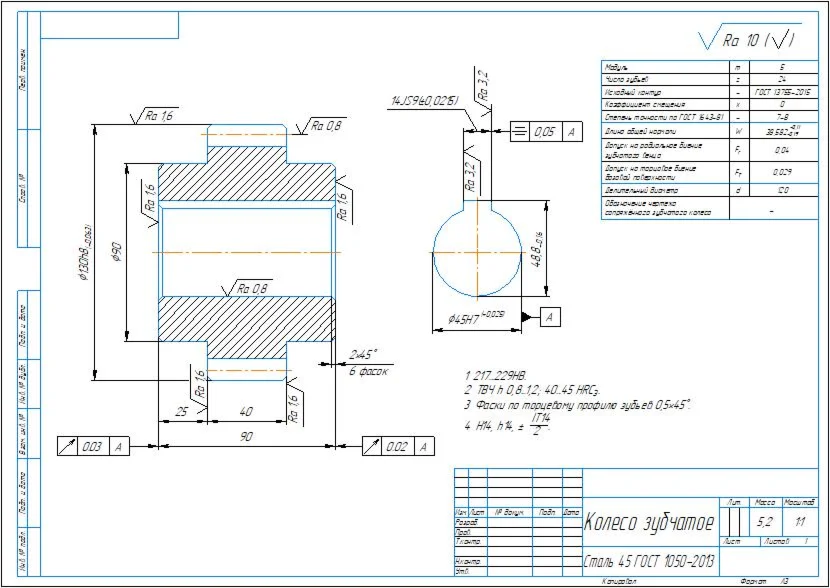

Working drawing of the part gear wheel with the parameters of the gear ring: module m=5 mm; number of teeth z=24 pcs. The drawing is made in compass.
