Drawing of a gauge-bracket for shaft control 13e9 in a
📂 Drawings
👤 alexey_ktop
Product Description

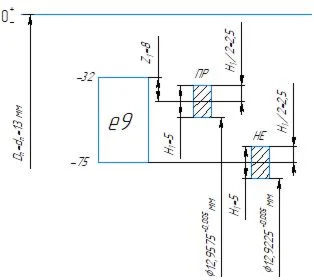

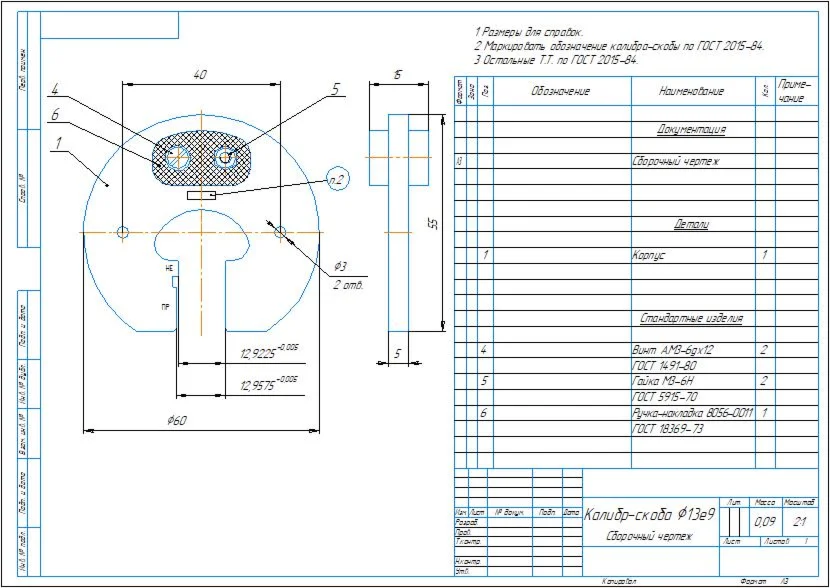

Assembly drawing with specification of smooth gauge-bracket for checking shaft with diameter of 13 mm with tolerance field e9 (13e9) in program compass. Also attached is the scheme of arrangement of tolerance fields.
