This set of working projects provides for the installation of the central dispatching communication console (CDC) SDS-4450 by REKO-VEK in the building consisting of the following:
• Central dispatcher console (PD-4450);
• Additional section of the dispatcher console (DS-1050);
• Intercom;
• Microphone activation pedal.
The designed equipment is installed on the dispatcher's desk in the "Operator" room and is connected to the information sockets of the structured cabling system of the building. The dispatcher console is powered from the panel with a direct current of 24 V.

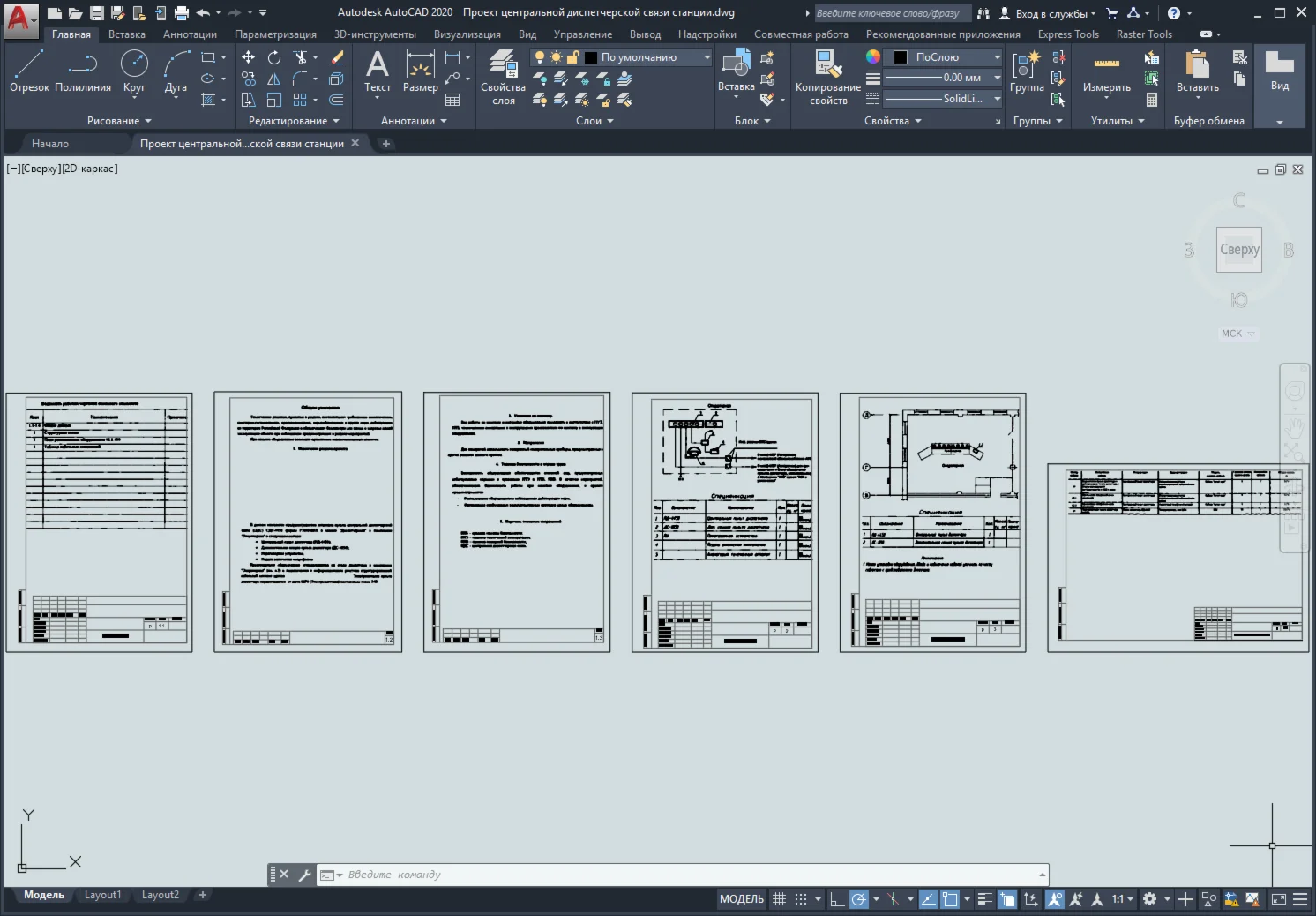

File format: dwg, tif (AutoCAD 2010 is not editable)
Note: the original files in *.tif format must be in the same folder with the project file *.dwg

Download the file "Project of the central dispatching communication of the station" >>>

Tags: gas compressor station, dispatching
