Working project of water supply of the compressor station control room building:
The following water supply and sewerage systems are designed in the control room building:

- domestic and drinking water supply - B1;

- hot water supply - TZ;

- household sewerage - K1.
System B1 is used for domestic and drinking needs of employees.

For the preparation of drinking water in the dining room, a reverse osmosis unit RO-889-550 is designed, selected according to the recommendations of NPO "Filter" in accordance with the water analysis. Connect the unit to the cold water supply and sewerage systems in accordance with the installation and operation manual.
The source of hot water TZ in the control room is ISEA capacitive electric water heaters installed in the dining room and in the toilet. The hot water supply system is designed from steel water and gas galvanized smooth-cut lightweight pipes for thread rolling according to GOST 3262-75*.
The K1 system is designed to divert domestic sewage from sanitary devices into the designed sewerage network of the industrial site.

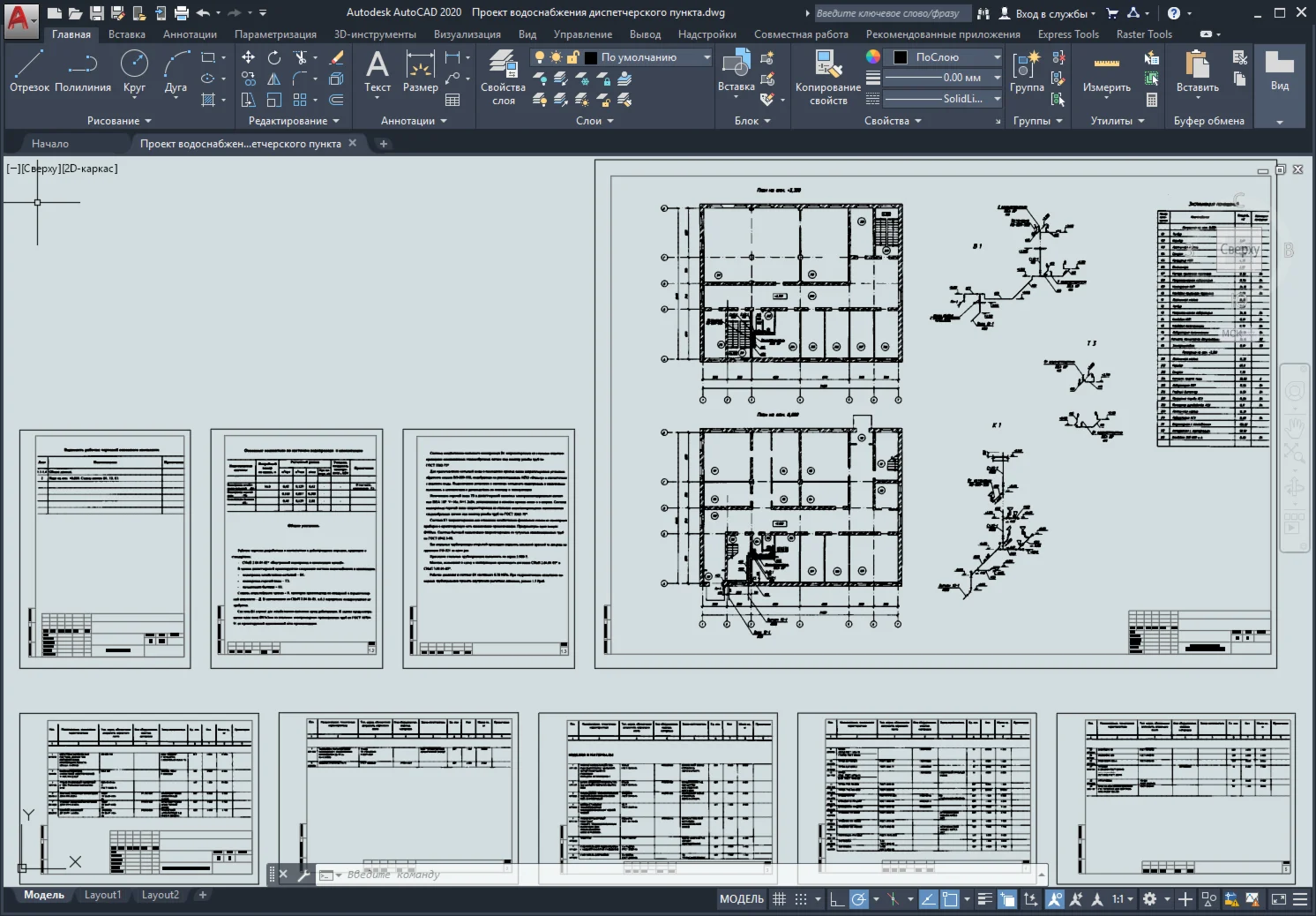

File format: dwg, tif (AutoCAD 2010 is not editable)
Note: the original *.tif files must be in the same folder with the *.dwg project file
