In this project, a security alarm system for a KTP AVO gas building has been developed. The security alarm system for the premises is implemented using the following equipment:
- PO 102-4 (magnetic contact detector) - blocking doors and windows from opening;
- DPMGR-2 (position sensor) - blocking gates;
- Foton-9 (volumetric optical-electronic detector) - blocking the volume of the premises, the detector detection zone is 10x12 m, the installation height is not less than 2.3 m from the floor, powered by a 12 V DC source, issues an alarm notification by opening the contacts of the executive relay, the consumed current is 15 mA, the installation location is a wall.
All detectors are included in one loop, which is output to the S2000-4 device installed in the KTP PPCP S2000-4 via the RS-485 interface connected to the Orion ARM installed in the security room of the administrative and amenity building.
The detectors are powered from the Rip-12 redundant power supply unit.
The alarm loop and the power supply circuit of the detectors are laid in a cable channel. The cable to the Biya-S alarm device along the facade of the building is laid in a steel pipe. The Biya-S alarm device is installed on the facade of the building at a height of at least 2.5 m from the ground. To protect the Biya-S light and sound alarm device installed outside the building from precipitation, use a casing made of galvanized steel.

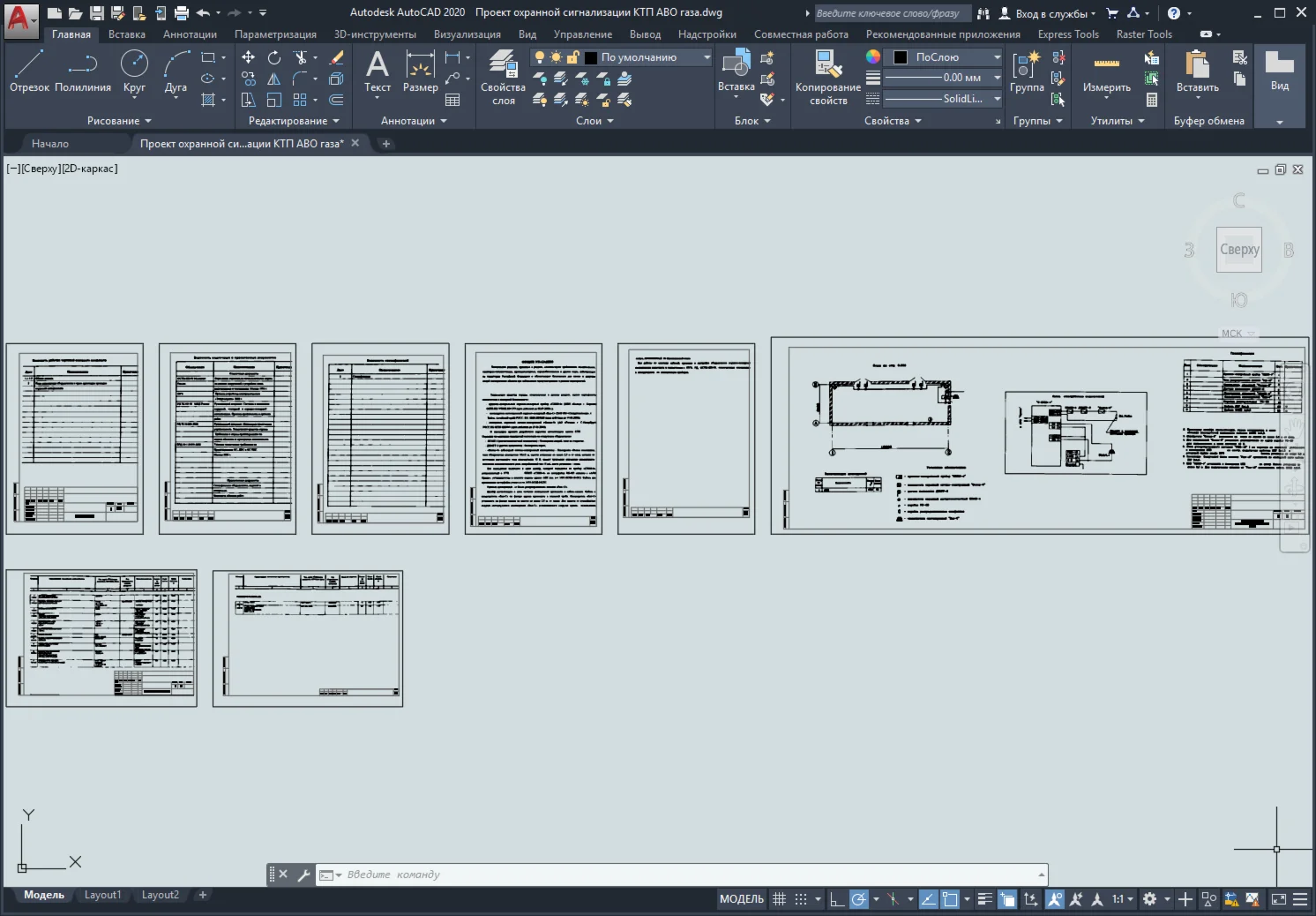

File format: dwg, tif (AutoCAD 2010 not editable)
Note: source files of *.tif format must be in the same folder with the project file *.dwg

Download file "Project of security alarm KTP AVO gas" >>>

Tags: gas compressor station, AVO gas
