Drawing of a helical gear shaft in a compass
📂 Drawings
👤 alexey_ktop
Product Description

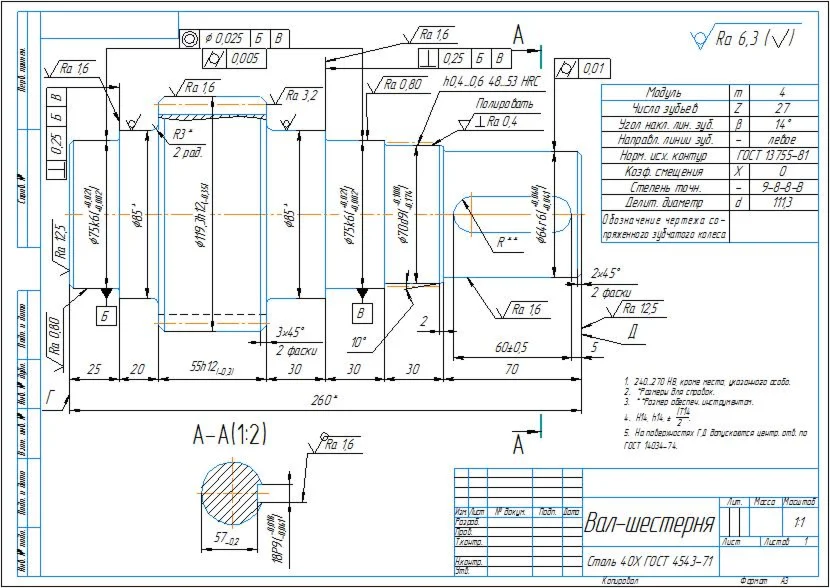

Working drawing of the helical gear shaft part. The drawing is made in a compass. Ring gear parameters: module 4 mm, number of teeth 27, gear inclination angle 14 degrees.
