Drawings of a worm gearbox in a compass
📂 Drawings
👤 alexey_ktop
Product Description

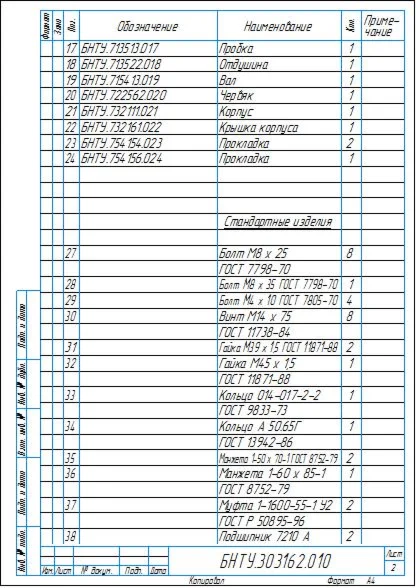

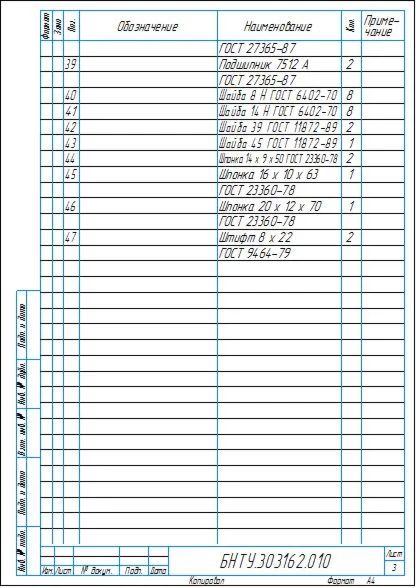

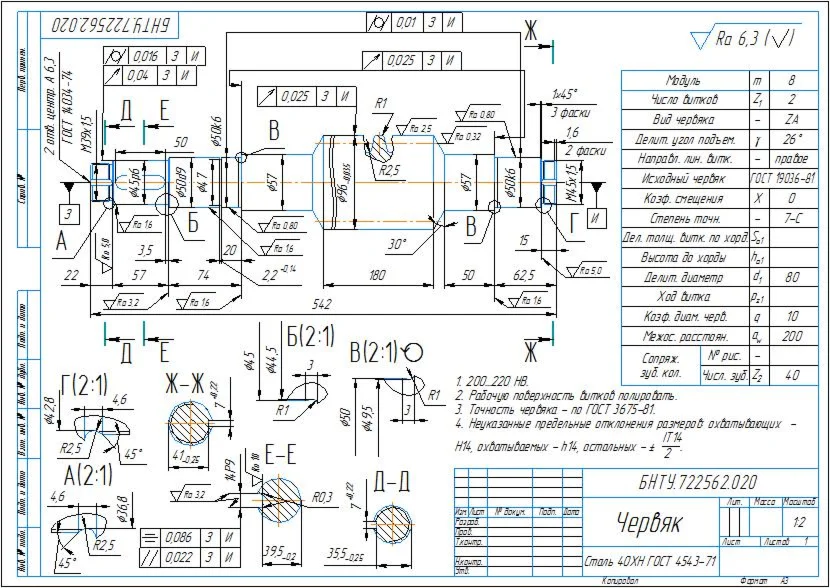

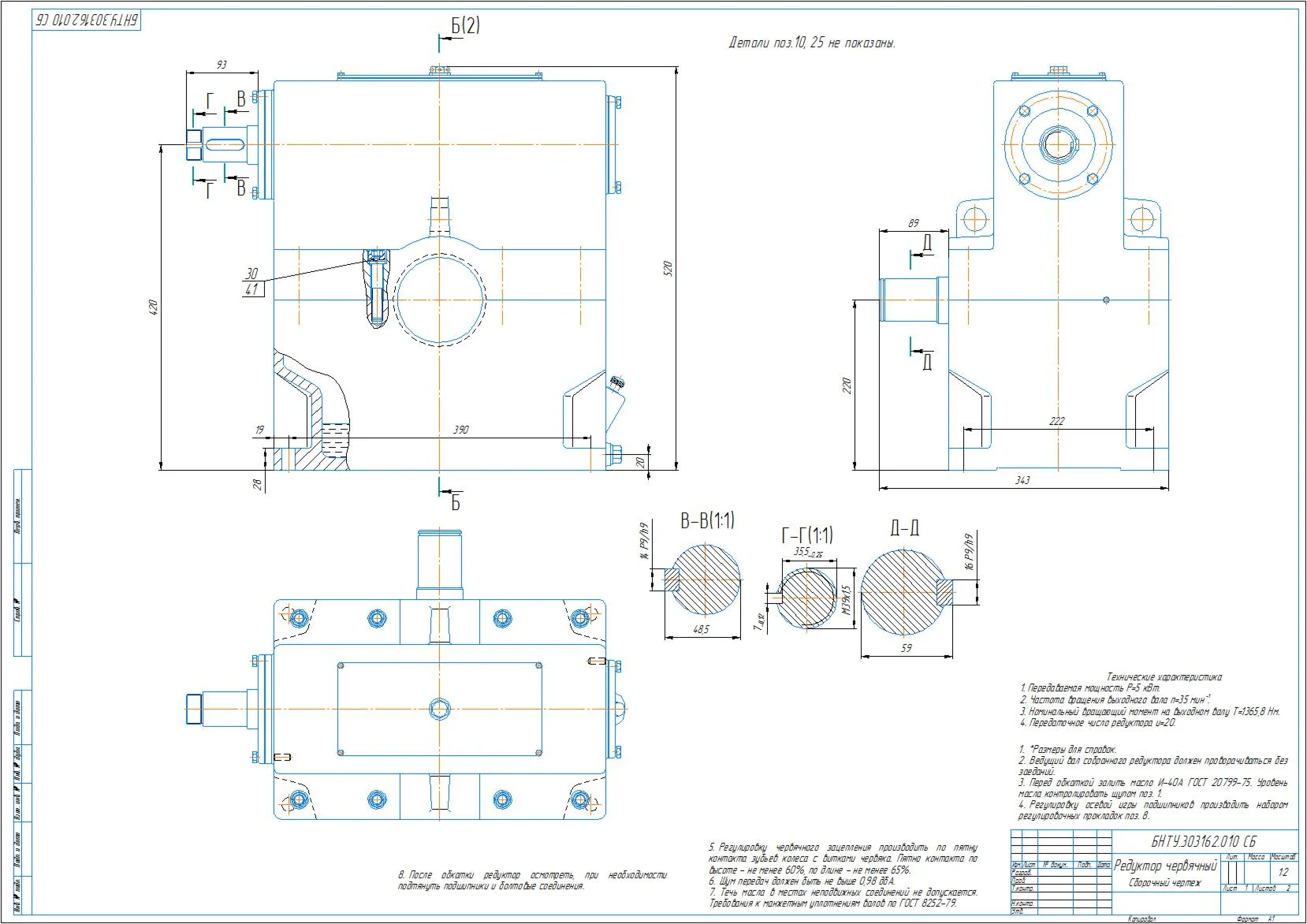

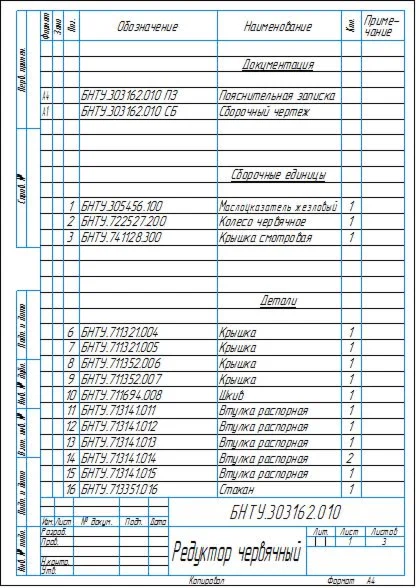

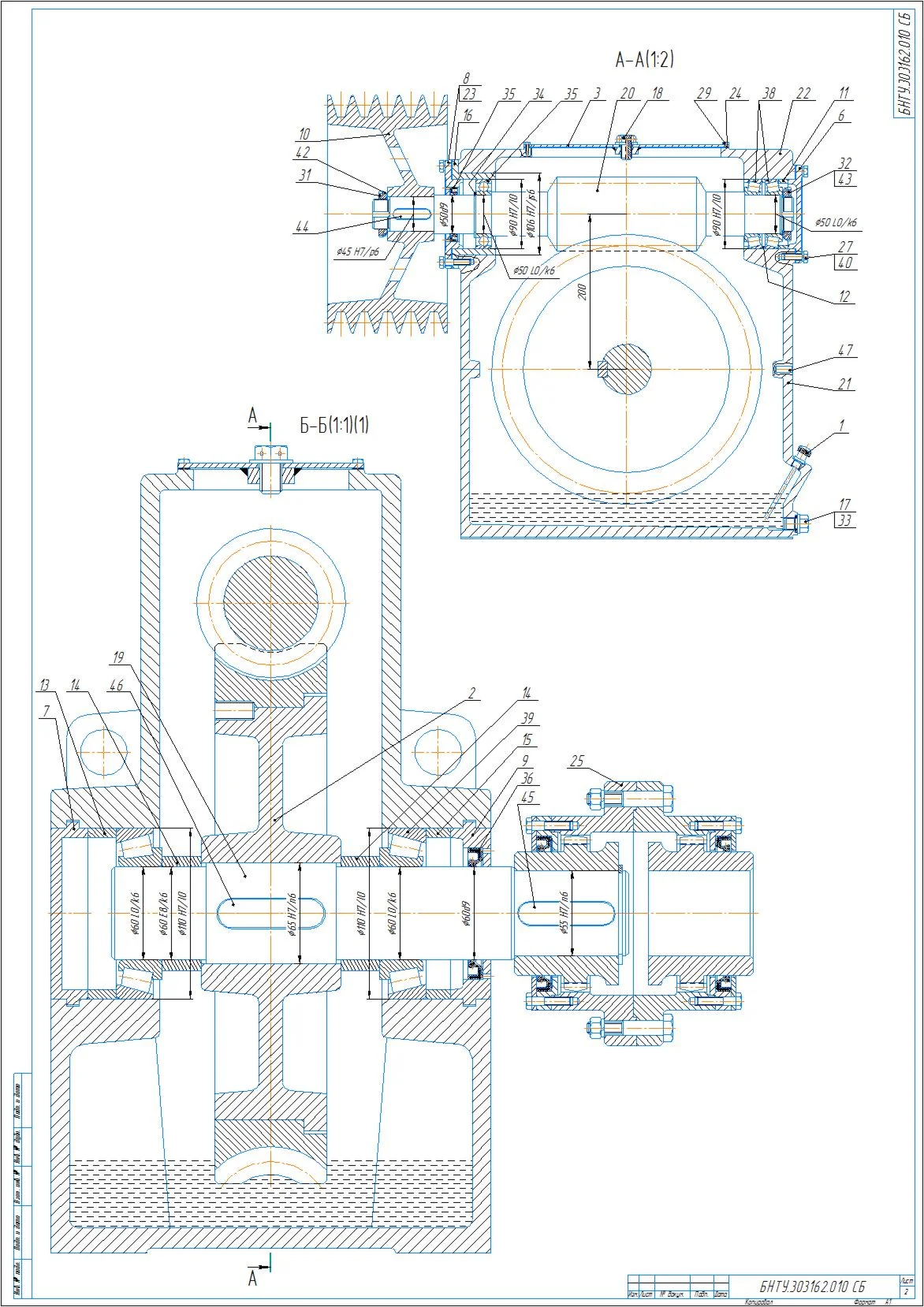

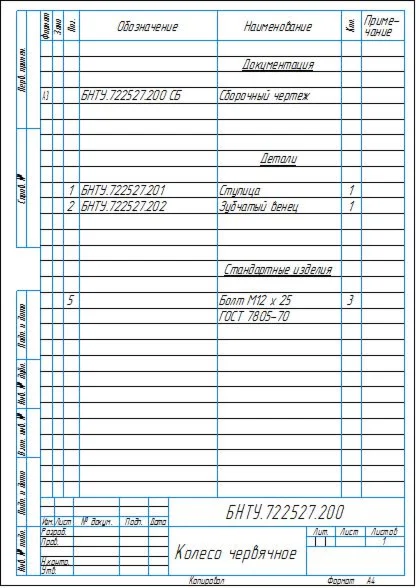

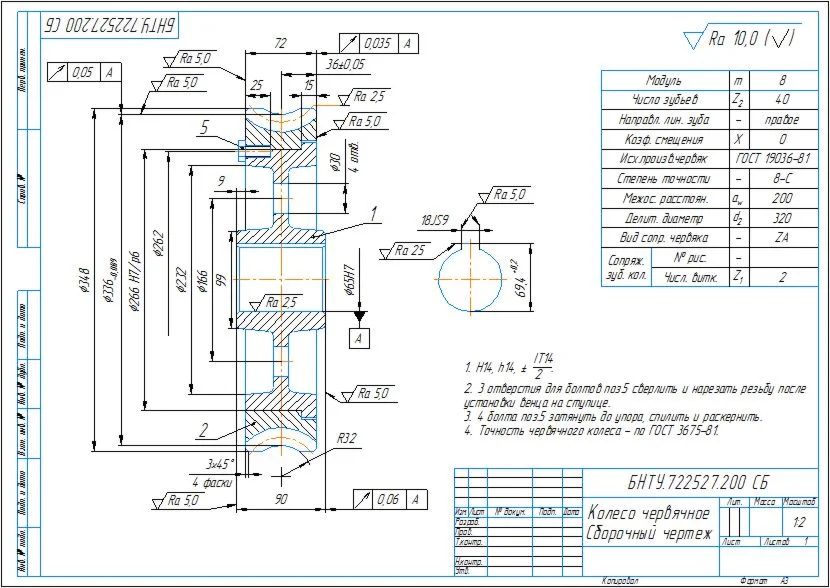

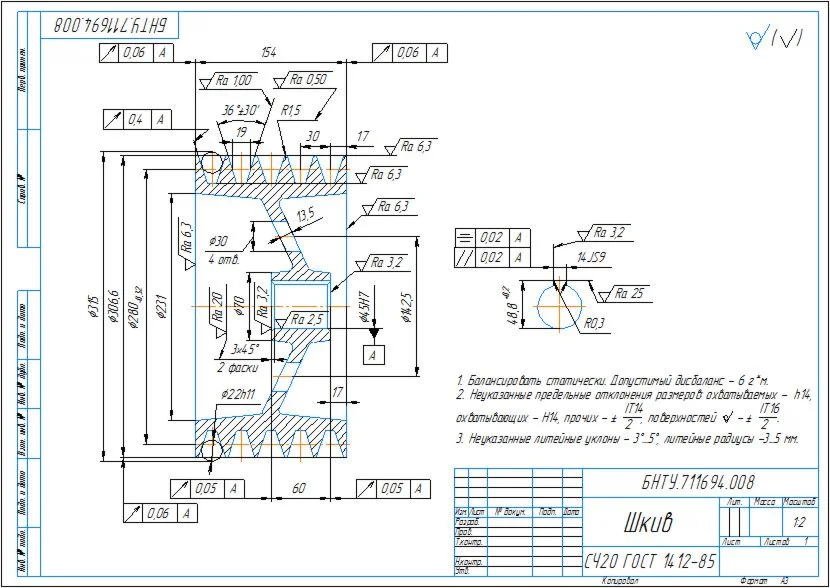

Assembly drawing and specification of a worm gearbox with an overhead worm. Gearbox parameters: center distance 200 mm, gear ratio 20. Drawings of a worm wheel, a worm, a poly-V-ribbed pulley, and a low-speed shaft were also made. The drawings are made in compass.
No Reviews Yet
Be the first to leave a review for this product!
