Drawing of a herringbone gearbox in a compass
📂 Drawings
👤 alexey_ktop
Product Description

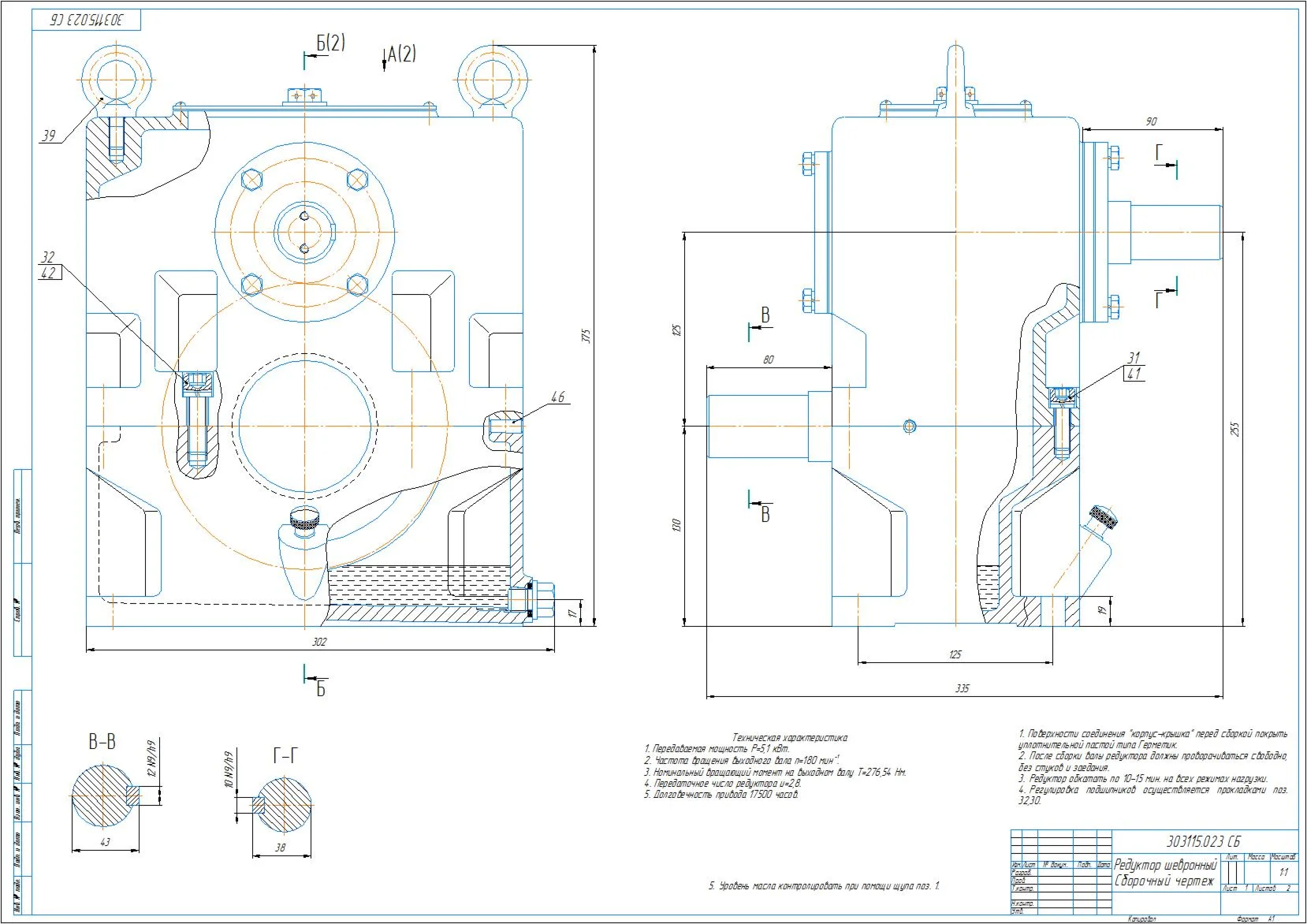

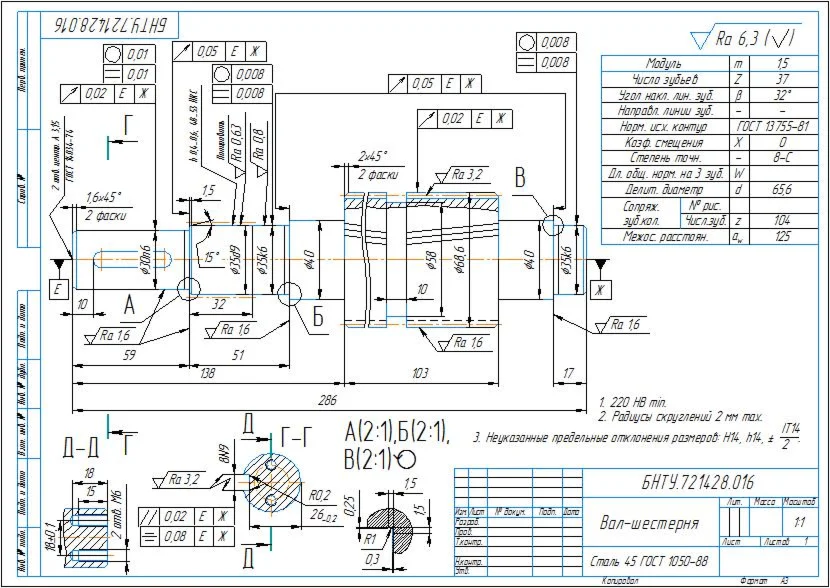

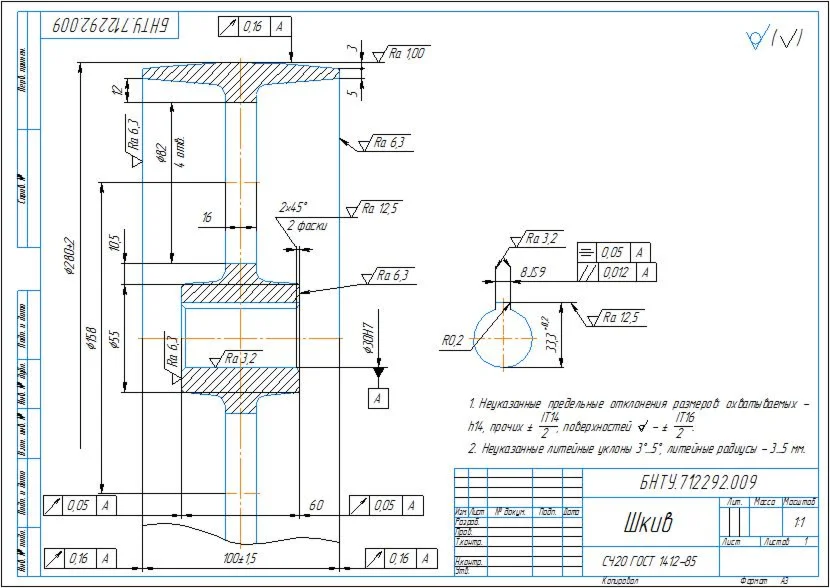

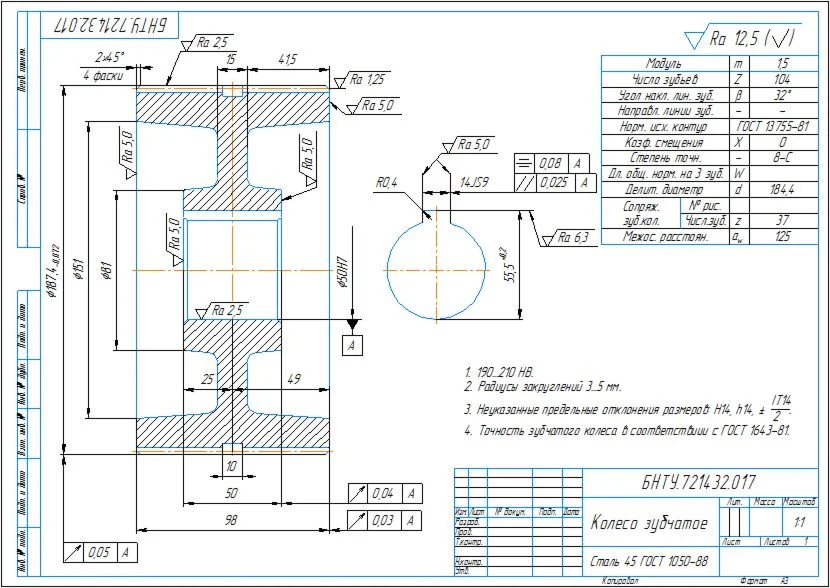

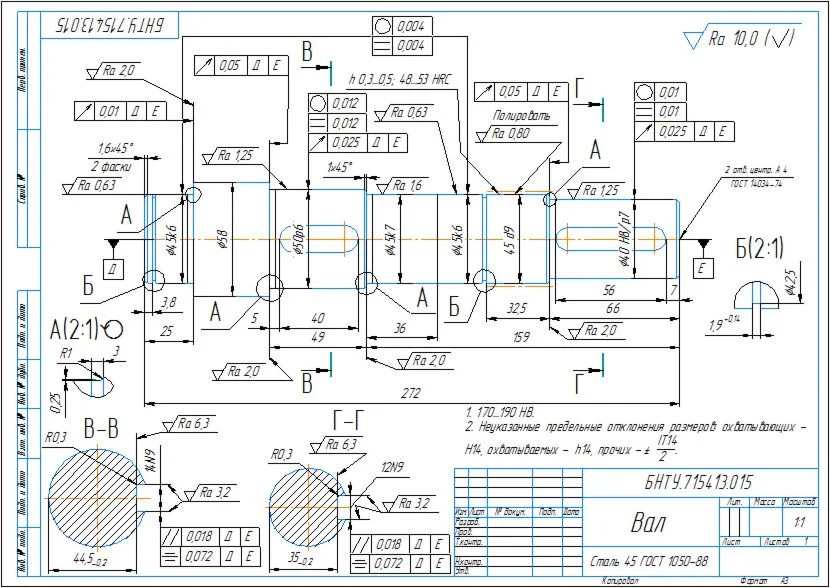

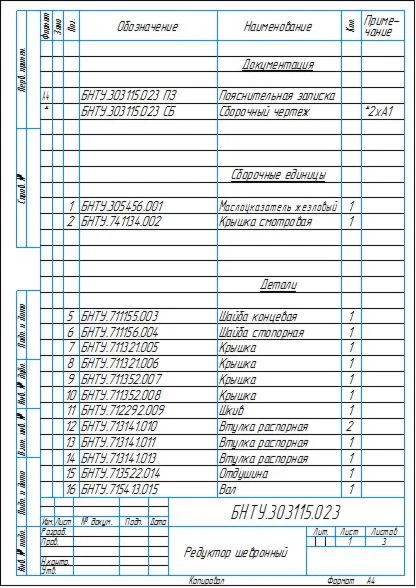

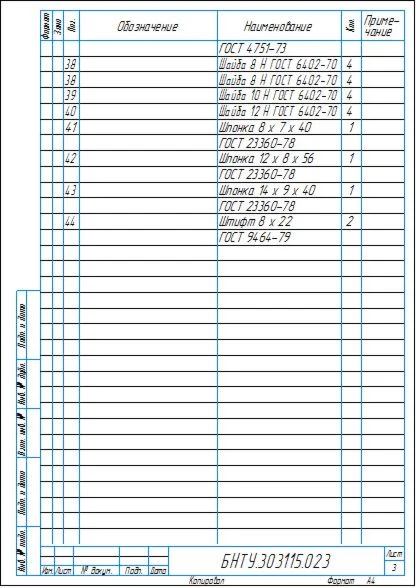

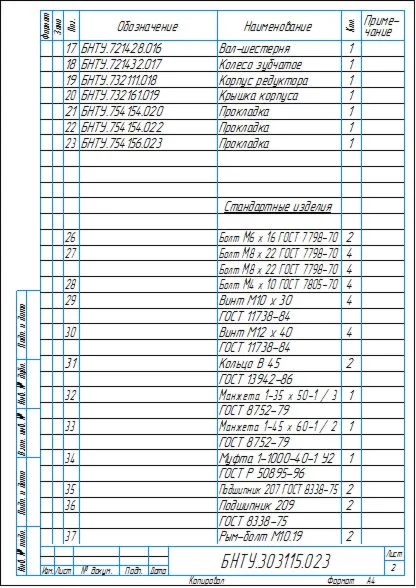

Assembly drawing, specification, drawings of parts: shaft, pinion shaft, flat belt pulley, gear wheel for a herringbone cylindrical gearbox in a compass. Gearbox parameters: engagement module 1.5 mm, gear ratio 2.8, center distance 125 mm.
