Drawing of plug gauge for hole inspection 14H7
📂 Drawings
👤 alexey_ktop
Product Description

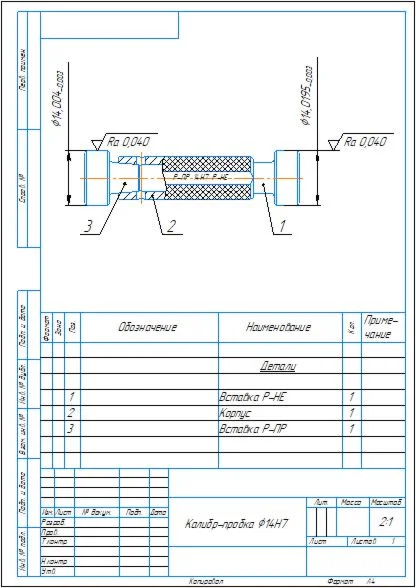

Assembly drawing combined with the specification of a smooth plug gauge for controlling a 14H7 mm hole in the compass
