Part drawing helical gear m=4, z=51 in compass
📂 Drawings
👤 alexey_ktop
Product Description

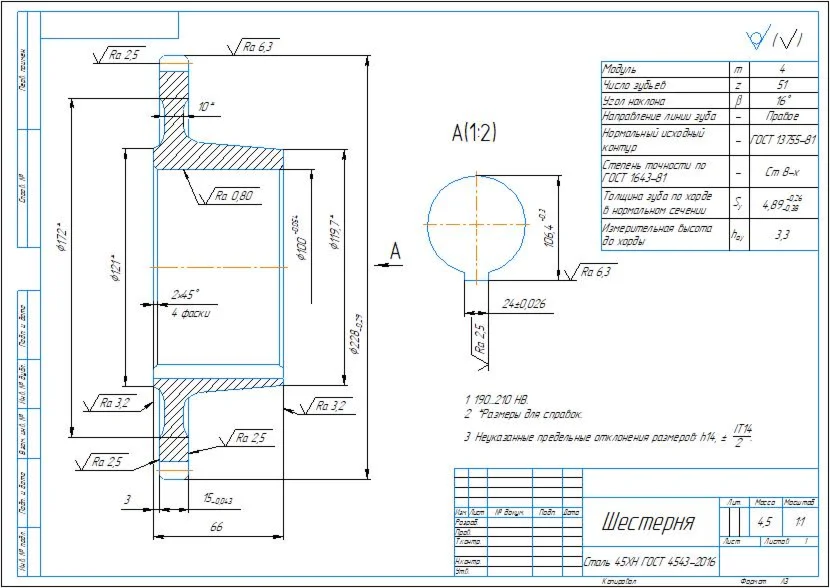

Working drawing of the helical gear part m=4, z=51 in the compass. The angle of inclination of the ring gear is 16 degrees.
