Part drawing of a helical gear in a compass
📂 Drawings
👤 alexey_ktop
Product Description

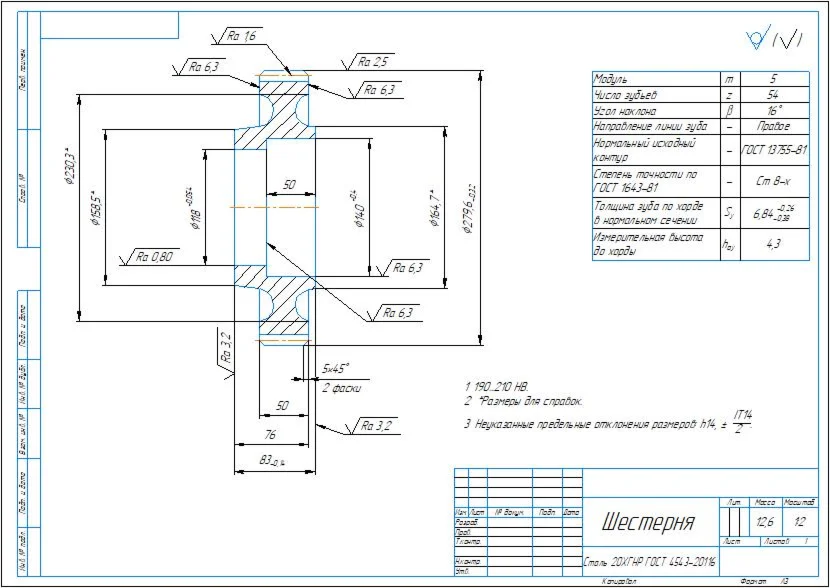

Working drawing of the helical gear part in the compass. Ring gear parameters: module m=5 mm, number of teeth 54 pcs., gear inclination angle - 16 degrees.
