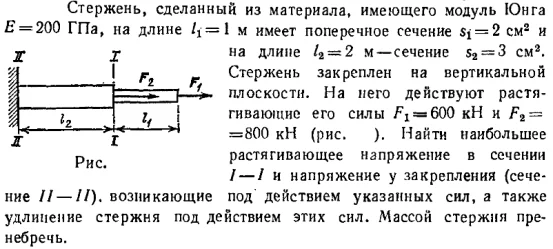

A rod made of a material having Young's modulus E = 200 GPa has a cross section of s1 = 2 cm2 at a length l1 = 1 m and a cross section of s2 = 3 cm2 at a length l2 = 2 m. The rod is fixed on a vertical plane. It is subject to tensile forces F1 = 600 kN and F2 = 800 kN (Fig.). Find the maximum tensile stress in section I - I and the stress at the fastening (section II - II) arising under the action of the indicated forces, as well as the elongation of the rod under the action of these forces. Neglect the mass of the rod.

Detailed solution. Format gif
